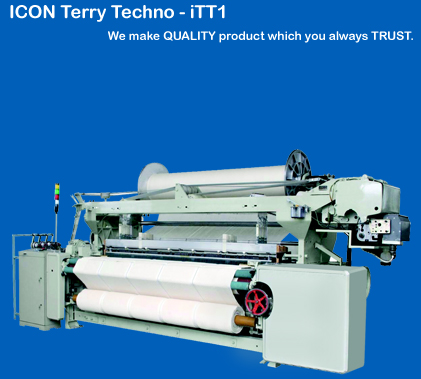

Terry techno towel loom is used to weave all kinds of Spiral satin or small jacquard satin towels for face, tea, bath and floor etc. with the material of cotton, wool and blended yarns.
Jeans, bed sheet, and other heavy fabric can be weave.
With stronger frames and improvement of the betting - up, special weft insertion device make - 736 loom more special, easy to achieve higher speed and able to weave thicker fabrics than any other imported and domestic rapier loom
Technical Data:
| Reed width(cm) |
200, 230, 260, 280 cm |
| Rotation Speed |
250 r.p.m |
| Weft Selection |
6, 8 Colours |
| Yarn count |
Cotton7Ne-60Ne, Wool12Nm-100Nm, Chemical fabric 100D-650D |
| Dia of warp beam |
Ø800mm, (ground) Ø800mm |
| Dia of rolling-up |
Ø400mm, Ø500mm |
| Let-off type |
Positive electric let-off |
| Terry rasing type |
Producing terry by movable reed |
| Height of terry |
Stepless adjustment from 2 to 12 times |
| Shedding mechanism |
Upper-placed electronic dobby spring reversing (24 shafts) |
| Weft stop |
Piezoelectric control |
| Warp stop |
3 rows electric warp stop |
| Electric control |
P.L.C |
| Power |
2.5-3.2 kw main motor |
|
