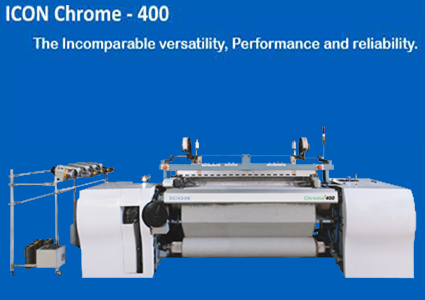

ICON Chrome 400
ICON Chrome 350 rapier loom is a new model especially designed to weave thick/heavy fabrics; Its frame system, warp delivery system, pick-up system and weft beating system all have been strengthened and developed; this model is especially suitable to weave all kinds of thick and heavy fabrics such as jean and particular industrial cloth
TECHNICAL SPECIFICATION
-
Reed Width (cm)
190,210,230,280,320,360,380
-
Reed Reduced
Criterion is 50cm,can adjust to 90cm
-
Yarn Count
Short fiber 2-200Nm
Long fiber 22-4000 den
-
Weft Density
3-80 picks/cm
-
Weft Colors Selection
Electrical weft selector, 6 or 8 color free weft selection
-
Weft Control
Piezoelectric inductor sensor
-
Filling Insertion Motion
Double side cam transmission, weft central transmission
-
Slay Movement
Separate slay, driving by the conjugate cam which both sides in oil box
-
Shedding device
Mechanical Dobby or Electronic Rotating Dobby, may take 12-20pcs frames, or fit with mechanical type or electronic type jacquard
-
Weft Finding
Automatic controlled by micro-processor
-
Take-off and Take-up
Synthesized mechanical let-off and take-up or electronic type take-off/take-up
-
Warp Beam
Diameter of single warp beam plate: 800 mm, diameter may reach 1000mm according to the customer
-
Cloth Roller
Roll-up cloth diameter may reach 550mm,may configure external large package
-
Selvedge
Leno device, melt selvage, or tuck-in device
-
Lubrication System
Main parts in lubrication box
|
