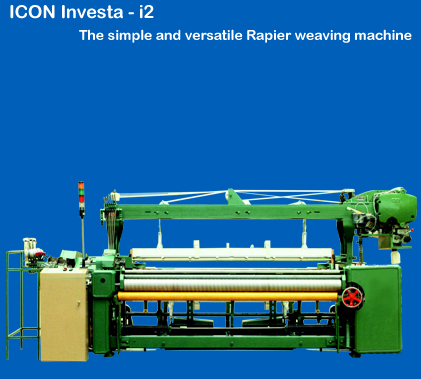

This machine is one of the new economic shuttleless loom, which are suitable for cotton, wool, chemical fiber etc. This loom is equipped with T-in-D to make fine selvedges.
The wide loom adopt double warp beam, which makes the warp sizing be more convenient.
Stable performance. low noise, easy to maintain.
Technical Data:
| Working width |
300,330,340,360 cm |
| Speed |
150-120 r.p.m |
| Weft selection |
4 Colours (6 Colours) |
| Weft Density |
14-40 root/cm |
| Max. insertion Rate |
300-420 m/min |
| Power |
1.5 kw-960 r.p.m main motor |
| Warp beam dia. |
Ø600 mm |
Optional:
|
